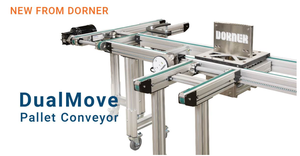

The DualMove is Dorner’s newest addition to the Pallet System line of conveyors and has replaced the 2200 Precision Move Pallet Systems.

The DualMove is a twin-strand timing belt pallet conveyor solution. With a focus on smooth product transfer, precise positioning, and impeccable timing DualMove is the ideal conveyance tool for manufacturing across a multitude of applications. What sets it apart? Not only does it promise performance, but its industry leading lead times ensure a integrators and end users fast delivery and integration into larger systems.

Features

• Extruded aluminum, light weight with industry standard T-slot
• Industry standard pallet sizes
• Larger T10 timing belt & robust design
• Innovative single point tensioning & belt tracking system
• Variety motor location configuration
• Easy configuration tool & CAD download
• Low product leadtime 20 days or less for standard product
• Customizable conveyors & turnkey solution

Benefits

• Provides easy installation & flexibility of automation sensor or equipment.
• Making retrofits & line expansion cost effective.
• Allows for maximum load capacity in a small package.
• Making it easy to install & maintain product.
• Allowing most flexible design of assembly lines
• Reducing time and effort during design process
• Providing more time for integration with other equipment.

Product Specifications

• Load capacity up to 900lbs non-accumulation & 480lbs accumulation
• Heavy Load e-Drive; 56C face motor
• Medium Load e-Drive; 42CZ face motor
• 24VDC option
• Width to match pallets
• Custom widths available in Dtools starting at 140mm in 5mm increments
• Nominal widths 160, 240, 320, 400, 480, 640, and 800mm
• Lengths starting at 300 to 7500mm in 5mm increments
• End Drive 300-3800mm
• Mid Drive 500-7500mm
• 5 fixed speeds available, gearbox pre-mounted on conveyor
• 5, 8.2, 16, 33, 66 Meters per Minute
• Belt Options
• Pinned or Fused (Pinned reduces capacity, but increases serviceability)
• Low friction (green), best for accumulation
• Medium friction
• ESD low friction for electronics assembly application

Accessory Modules

• Lift and Transfer
• Used to transfer pallet to other conveyors.
• Reject loop, test station, or used as a corner.
• Changes the orientation of the product as it transfers by 90 degrees.
• Transfers can receive or send pallets.
• Pass thru or end stop.
• Comes with pallet stop; cushioned or non-cushioned.
• Optional M12 sensor brackets
• Optional Safety Guarding
• Lift and Locate
• Used to accurately located pallet and work piece.
• Robotic assembly, picking, loading, vision inspection
• Locates pallet within 0.005” in all direction.
• Vertical pallet stops provides accurate vertical location and ensure pallet is fully engaged on precision pins.
• Load capacity exceeds pallet limit to allow additional external forces.
• Pallet widths from 160 – 240 >>> 85lbs at 60psi air pressure
• Pallet widths from 320 – 480 >>> 200lbs at 60psi air pressure
• Pallet widths from 640 – 800 >>> 350lbs at 60psi air pressure
• Comes with pallet stop; cushioned or non-cushioned.
• Optional M12 sensor brackets
• Optional Safety Guarding
• Lift and Rotate
• Used to change orientation of pallet and work piece.
• Inspection systems, back side work, return leading edge after transfer.
• Rotates in increments of 90 degrees.
• Designed with breakaway magnetic plate to ensure safety.
• Load capacity matches pallet loads
• Comes with pallet stop; cushioned or non-cushioned.
• Optional M12 sensor brackets

Optional Safety Guarding
