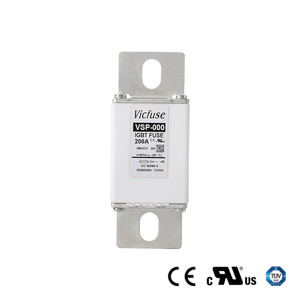

The Vicfuse VSP-000 Series is a semiconductor protection fuse designed for use in high-power electronic circuits requiring reliable short-circuit and overload protection. Built for IGBT-based systems, the fuse supports both AC and DC voltage applications with a rated voltage of 1000V AC/DC.

The series is designed to provide controlled interruption performance under fault conditions, helping protect sensitive semiconductor devices from damage caused by high fault currents.

The VSP-000 is available in a wide current range from 25A to 500A and is suitable for integration in industrial power conversion systems using bolt-mounted BB terminal construction.

Key Features

• Semiconductor protection fuse for IGBT applications
• Rated voltage: 1000V AC / DC
• Current range: 25A to 500A
• Interrupting rating: 50kA
• Designed for aR operating class
• High voltage DC and AC capability
• Bolt-type BB terminal construction
• Wide current grading for system design flexibility
• Designed for high-power semiconductor protection

Electrical Ratings

• Voltage Rating: 1000V AC / 1000V DC
• Current Rating: 25A–500A
• Interrupting Rating: 50kA

Operating & Environmental Conditions

• Operating temperature: -40°C to +125°C
• Storage temperature: -40°C to +70°C
• Humidity: 5%–90% (operating), 5%–70% (storage)

Mechanical / Design Information

• Series: VSP-000
• Terminal type: BB (Bolt-on type)
• Mounting style: Bolt-type semiconductor fuse
• Indicator: Optional (per ordering code)
• Size code: VSP-000

Ordering Information

Format:

• VSP-000 XXXA 1000VACDC BB - V aR

Example:

• VSP-000 100A 1000VACDC BB aR

Typical Applications (datasheet-based category only)

• IGBT protection circuits
• Semiconductor power converters
• Industrial rectifier systems
• High-voltage power electronics
• Inverter systems
• DC/AC power conversion equipment

Compliance

• CE
• UL
• CUL
• CCC
• RoHS / REACH
• IATF16949 / ISO certifications (company level)

Engineering Summary

The VSP-000 Series is a high-voltage, current-limiting semiconductor fuse designed for reliable protection of IGBT and power electronic systems. With a 1000V AC/DC rating and 50kA interrupting capability, it provides controlled fault interruption and supports safe operation of high-power conversion equipment.
