Pulsation Dampeners provide six piping system safeguards
Pulsation dampeners are multifaceted safeguards in a piping system: Smoothing pump flow, increase pump longevity, absorb vibrations, eliminate dangerous pressure spikes, release fluid during pressure drops, and absorb thermal expansion.

Introduction to Pulsation Dampeners / Surge Suppressors
Innovative Design Provides Multiple System Safeguards

Functions:

1. Pulsation Dampener smooths pump flow
2. Surge Suppressor absorbs shocks and vibrations
3. Water Hammer Arrestor eliminates dangerous pressure spikes caused by quick closing valves
4. Inlet Stabilizer enhances pump performance and longevity
5. Accumulator releases stored fluid during unwanted pressure drops
6. Expansion Tank protects system from thermal volume increases

Design Features:

• Large inlet improves response
• Inlet screen protects bladder with minimal flow obstruction
• Dual seal channels protect against air and system leaks
• Top quality thermoplastics and elastomers resist chemical attack, protect system purity
• No wetted metal parts

Description:

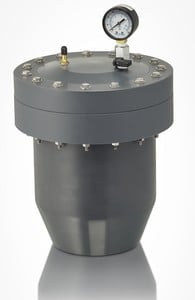

PDS is available in three capacities/sizes: 10 cubic inch capacity with a 1″ NPT process connection, 50 cubic inch capacity with a 2″ NPT process connection, and 180 cubic inch capacity with a 3″ NPT process connection. Body materials are choice of Geon PVC, CPVC, Natural Polypropylene, or Kynar PVDF. Inlet screen and dome top match selected body material. Bladder material is EPDM or FKM. Air inlet valve and gauge isolation valve (non-wetted) are brass. Fasteners are stainless steel.

For other material or connection requirements, please consult factory.

How it Works:

Pulsation Dampener and Surge Suppressor will steady a pulsing flow caused by diaphragm pumps, piston pumps, peristaltic pumps and other quick flow interrupting equipment. The PDS will steady a vibrating pointer of a pressure gage or flow meter under flowing conditions. When used properly, quick pulsating flows will be greatly reduced preventing the following flow control problems:

• Prevents Fatigue of all Pipes and Inline Equipment.
• Ruptured Piping, Gaskets and Seals
• Leaking and Weakened Connections
• Pipe Vibration and Noise
• Damaged Valves and Filters
• Damaged Pressure Regulators and Gages
• Loosened Pipe Hangers and Supports
• Premature Failure of other Equipment and Devices
• Prevents Splashing and Foaming of Fluids

Pulsation dampening provides the added benefit of smoothing the output supplied by many types of pumps, especially double diaphragm pumps and metering pumps. This provides a steady, uninterrupted supply to points of use, which will greatly enhance system productivity, prolong pump life, and prevent splashing and foaming.

Water Hammer Arrestor When used properly, water hammer will be greatly reduced to just a few percentage points of the spike that the system would have without using the PDS. This helps prevent the following flow control problems, as per the Plumbing and Drainage Institute Standard PDI-WH 201:

• Ruptured Piping
• Leaking Connections
• Weakened Connections
• Pipe Vibration and Noise
• Damaged Valves
• Damaged Check Valves
• Damaged Water Meters
• Damaged Pressure Regulators and Gages
• Damaged Recording Apparatus
• Loosened Pipe Hangers and Supports
• Ruptured Tanks and Water Heaters
• Damaged filters
• Premature Failure of other Equipment and Devices

Inlet Stabilizer AKA “Suction” Stabilizer — Installed as close as possible to the pump inlet, the PDS will take in liquid when the system is pressurized. If the dome is properly charged with compressed air, the PDS will expel the liquid back into the pipeline when the pump draws liquid and pressure drops. This repeated action ensures a continuous supply of liquid to the pump, reducing strain on the pump and greatly improving pump efficiency. Used in combination with a PDS on the discharge, in most cases the pump will supply a smooth, steady flow at a constant pressure and prevent the following pump related problems:

• Cavitation and “starvation”
• High frequency pressure waves
• Incomplete filling of pump chambers
• Uneven flow and pressure
• Pump friction and overheating
• Pump damage and premature failure

Accumulator As with the inlet stabilizer function above, the PDS will take in liquid when the system is pressurized. If the dome is properly charged with compressed air, the PDS will expel the liquid back into the pipeline when pressure drops. This cycle is automatic, or the liquid and line pressure can be retained and released as needed simply by using a blocking valve between the PDS and the piping tee. The accumulated liquid and pressure could be held for unexpected power outtages or other system failures, and then used to complete a cycle, retained for backflush during scheduled maintenance, or any other requirements when the regular process is off or interrupted. When the intended use of the PDS is solely as an accumulator, the blocking valve need not be a full port design.

Thermal Expansion Tank Liquid temperature generally increases in a flowing condition. It can also increase due to processes or external factors that transfer heat to the media. When temperature increases and liquid — which is non-compressible — expands in a closed system, the results can be catastrophic. The PDS can be used as a simple expansion tank in many applications where anticipated expansion would be less than the stated capacity of the unit.

Important: Please note that Series PDS is designed to operate as a pressurized vessel. Proper precaution should be taken to ensure safe installation and operation; read the installation instructions carefully prior to use. The unit should be charged with regulated compressed air or nitrogen only. Oxygen must not be used. The gauge isolation valve should be closed prior to opening the system connection valve. Failure to observe all precautions could result in system failure, leaks, explosion, property damage, personal injury and/or fatalities.
