Spray Shields Information
In process industries, the assurance of safety and the integrity of operations rely on the implementation of various fail-safe mechanisms and precautionary measures. Among these, spray shields serve as a crucial component in mitigating the risks associated with hazardous leaks and sprays emanating from pipe joints and other connection points in a piping system.
Designed to encase these vulnerable points, spray shields act as an immediate line of defense against accidental splashes, sprays, or leaks of toxic, corrosive, or flammable substances. They not only protect workers but also reduce downtime and equipment damage, playing an instrumental role in maintaining operational efficiency.
Figure 1: Photo of spray shields fastened with drawstrings. Source: Public domain
Types and Materials
Spray shield can be manufactured from a variety of materials. Each material has its merits and limitations, and the choice would depend on factors such as the type of media, temperature, pressure, and corrosive nature of the environment.
https://www.youtube.com/watch?v=ipIchmcZKp4
Video: Metal spray shields installed on flange. Source: Amin Mark
Cloth
Cloth-based spray shields are often made from materials like PTFE-coated fiberglass or polypropylene fabric. These are lightweight and relatively cost-effective options. The major advantage is their ease of installation and affordability. They are often used in applications where the risk level is lower, such as water treatment plants or food processing facilities. However, cloth shields are generally not suited for high-temperature or corrosive environments, as the material can degrade more quickly under these conditions. Over time, they may require more frequent replacement compared to more durable materials, making them less ideal for heavy industrial applications.
Steel
Steel spray shields provide robust protection against high-pressure leaks and sprays. They are most commonly used in heavy industrial applications like petrochemical plants and refineries where mechanical robustness is essential. The primary advantages are their strength and durability, capable of withstanding both high pressures and temperatures. However, they are not typically suitable for corrosive environments as they are susceptible to rust and corrosion. They are also heavier and may require additional structural support when installed.
Stainless Steel
Combining the robustness of steel with superior corrosion resistance, stainless steel spray shields are a popular choice in corrosive environments such as chemical plants and marine applications. They are durable and can withstand high temperatures and pressures, making them ideal for challenging industrial settings. However, they come at a higher cost compared to standard steel or cloth shields, and like steel shields, they may also require additional structural support due to their weight.
Thermoplastic
https://youtube.com/shorts/EcxiaJk9WME
Video: PTFE spray shield installed on a flange. Source: Amin Mark
Thermoplastic shields, made from materials like polyethylene (PE), polyvinyl chloride (PVC), polypropylene (PPE), tetrafluoroethylene (TFE), and ethylene chlorotrifluoroethylene (ECTFE), offer excellent chemical resistance. They are often used in pharmaceutical industries or in settings where corrosive chemicals are handled. One unique advantage is that they can be transparent, allowing for visual inspection without removal. They are generally lightweight and easier to install than steel variants. However, they may not be suitable for extremely high-temperature environments and might lack the mechanical robustness of metal shields.
Fiberglass
Fiberglass spray shields are lightweight and offer a balanced profile of chemical and temperature resistance. They are often used in diverse industrial applications where a middle-ground between mechanical strength and chemical resistance is needed. The pros include corrosion resistance and lighter weight, making them easier to install without requiring additional structural support. However, they may not offer the same level of protection against extremely high pressures as metal shields, and they can be costlier than cloth shields.
Types of Joints
In any industrial piping system, joints and connections serve as critical points that facilitate the transfer of fluids or gases. However, these junctions are often vulnerable to leaks, sprays, or even catastrophic failures due to the pressure, temperature, and chemical nature of the media they handle.
Spray shields are protective wraps and are engineered to encapsulate various types of joints —be it flanges, valves, or more complex components like heat exchangers and pressure vessels. By doing so, they act as an immediate line of defense, containing and diverting hazardous leaks and sprays.

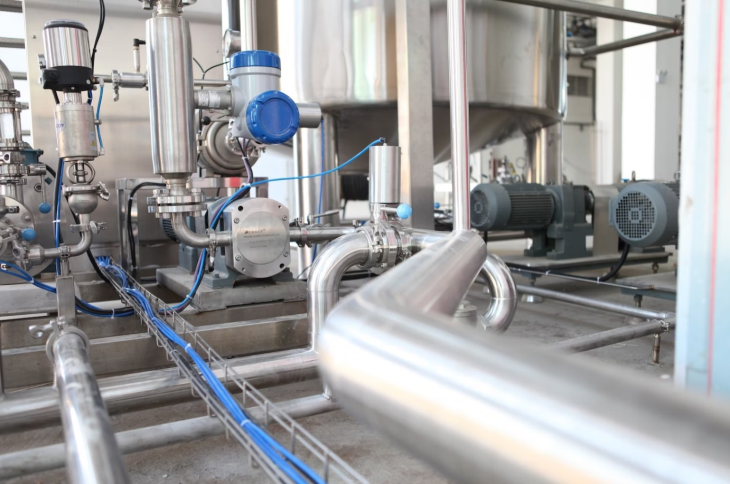

Figure 2: Industrial pipes. Source: Crystal Kwok/Unsplash
Understanding the different types of joints and connections where spray shields can be used allows for a more comprehensive approach to safety in various industrial settings. By selecting the appropriate type of spray shield for each joint, industries can significantly enhance worker safety and operational reliability.
The proper installation of spray shields is crucial to their effectiveness in containing and diverting hazardous leaks and sprays. While the basic premise of mounting a spray shield may seem simple — attach it to a joint and secure it — the details are often more nuanced, influenced by the type of joint, the material of the shield, and the operational environment.
Flanges
Flanges are one of the most common types of joints, serving as connection points in piping systems. They are particularly vulnerable to leaks due to the high pressure often exerted on them. Spray shields for flanges are usually designed to wrap around the circumference, effectively covering the bolts and the gasket area. They act as the first line of defense to contain and divert any leaks or sprays, thereby safeguarding personnel and equipment.
Valves
Valves control the flow of media and are often complex pieces of equipment with multiple potential leak points. Spray shields for valves are crafted to fit the irregular shapes, ensuring all potential leak points are adequately covered. They can be particularly beneficial in high-pressure or corrosive applications where valve integrity is crucial.
Couplings
Couplings join two pipes together and are especially vulnerable to leaks at the point of connection. Spray shields can be customized to fit securely around these connection points, offering an extra layer of safety against accidental leaks or sprays.
Unions
Unions are similar to couplings but are designed for easy disconnection and reconnection. Because of this feature, they may be more prone to leaks. Spray shields can be fitted snugly around unions to minimize risks while allowing for their quick disconnection when necessary.
Expansion Joints
These joints allow for thermal expansion and contraction in piping systems. Given the dynamic nature of expansion joints, the spray shields used for these are often made of flexible materials that can accommodate movement while providing a secure seal.
Elbows
Elbow joints change the direction of the pipe and can be vulnerable to wear and tear due to the flow dynamics. Spray shields for elbows are designed to adapt to the angular shape, offering protection against leaks that could be propelled in multiple directions.
Tees
Tee joints serve as junctions where a pipe is divided into two branches. Due to the complexity of flow dynamics in tees, spray shields are vital for containing any potential leaks or sprays that could emerge from these intersections.
Clamps
Clamps are often used to temporarily fix pipes or act as quick connection points. Spray shields for clamps are generally easy to install and remove, providing effective containment for short-term or variable configurations.
Pumps
Pumps can be high-risk equipment due to their mechanical components and high operating pressures. Custom-fitted spray shields can be used to cover vulnerable areas like the pump casing and flange connections, thereby minimizing leak risks.
Heat Exchangers
In heat exchangers, the risk of a leak is compounded by the presence of multiple media types and high temperatures. Spray shields can be tailored to fit the various tubes and flanges commonly found in these systems, providing comprehensive coverage.
Pressure Vessels
Pressure vessels like boilers and reactors operate under high pressure and are therefore at risk for catastrophic failure if a leak occurs. Specialized spray shields can be designed to fit these complex shapes, providing an extra layer of safety.
Flow Meters
Flow meters measure the rate of fluid or gas flow and often have sensitive components. Spray shields for flow meters are typically custom-designed to fit snugly around the device, shielding it from corrosive or hazardous leaks that could impair its functionality.
Customized Connections
For specialized or unique connection types, custom-fitted spray shields can be manufactured. These are particularly useful in bespoke industrial setups where standard solutions are inadequate. Custom shields can be designed to meet the specific needs and specifications of the application.
Types of Fastening Mechanisms
There are a variety of types of fastening mechanisms that are used with spray shields. The fastening mechanism plays an important role in ensuring that the shield stays in place, especially in dynamic or high-risk environments where a loose or improperly fastened shield could be detrimental.
Drawstrings
Typically used with cloth and thermoplastic shields, drawstrings provide a simple yet effective way to secure the shield. They are easily adjustable, allowing for quick installation and removal.
Hook and Loop Mechanisms
Often found in cloth and thermoplastic shields, these offer the convenience of easy installation and quick removal for inspection. They are generally not suitable for high-temperature applications due to the potential for material degradation.
Bolt and Nut Fasteners
Commonly used in metal shields, these offer robust fastening but require more time and tools for installation and removal.
Clamping Mechanisms
Particularly useful for irregular or complex shapes like valves or pumps, clamps offer a secure fit and can be used in conjunction with other fastening methods for added security.
Importance of Proper Tightening
A spray shield must be tightly secured to function effectively. A loose shield may flap due to airflow or vibrations, reducing its ability to contain leaks and increasing the risk of hazardous sprays escaping the barrier. In worst-case scenarios, a loose shield might even get dislodged, leaving the joint exposed.
Considerations for Various Environments
High-temperature environments: Metal fasteners or high-temperature-resistant drawstrings should be used. Hook and loop mechanisms are generally not suitable.
Corrosive environments: Material selection for fasteners is crucial. Stainless steel or thermoplastic fasteners may be preferable over regular steel to prevent corrosion.
Dynamic systems: In systems with moving parts or frequent thermal expansion and contraction, flexible and easily adjustable fastening methods like drawstrings or clamps may be more appropriate.
Periodic Inspection and Maintenance
Given that the effectiveness of a spray shield is closely tied to its secure fastening, periodic inspections are vital. Fasteners should be checked for integrity, and any signs of wear and tear on the shield or the fastening system should prompt immediate maintenance or replacement.
By paying close attention to the mounting and fastening mechanisms, industries can maximize the effectiveness of spray shields, providing a safer and more reliable operational environment.
Industry Applications
Spray shields find their applicability across a broad spectrum of industries such as petrochemicals, pharmaceuticals, water treatment plants, and food processing among others. In these settings, they are particularly invaluable where the media flowing through the pipes is hazardous, be it steam in a power plant, chemicals in a pharmaceutical setup, or natural gas in a refining unit. The idea is simple: contain any hazardous sprays or leaks within a secure barrier, thereby mitigating the risk of both human injury and equipment damage.
Customization
The versatility of spray shields comes from their ability to be manufactured to fit a wide range of joints and connection points. These can range from valves, couplings, and unions to more complex configurations such as heat exchangers and pressure vessels. The customization ensures that spray shields can be seamlessly integrated into almost any system, providing robust protection against unforeseen accidents and failures.
