1.

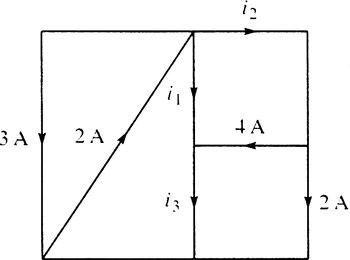

Determine i ₁, i ₂ and i ₃ in the network of Fig 2.1.

Figure 2.1

2.

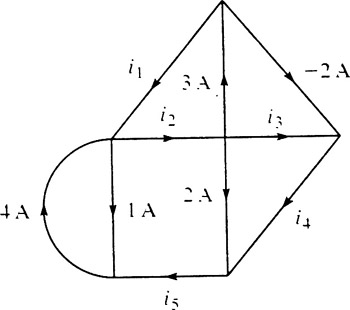

Determine i ₁ through i ₅ in the network of Fig 2.2.

Figure 2.2

3.

Determine i ₁ through i ₄ in the network of Fig 2.3.

Figure 2.3

KVL PROBLEMS

4.

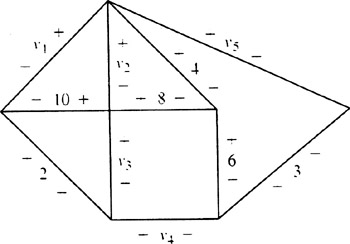

Determine v ₁ through v ₅ in the network of Fig 2.4.

Figure 2.4

5.

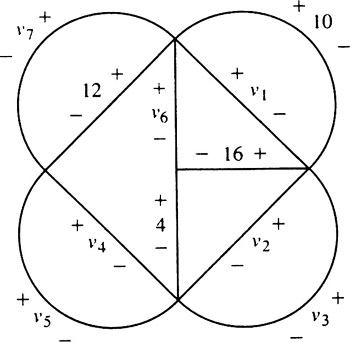

Determine v ₁ through v ₇ in the network of Fig 2.5.

Figure 2.5

6.

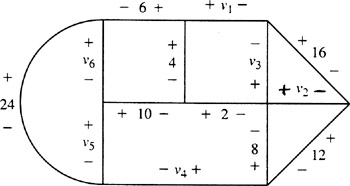

Determine v ₁ through v ₆ in the network of Fig 2.6.

Figure 2.6

EQUIVALENT RESISTANCE PROBLEMS

7.

Two resistors, R ₁ and R ₂ are connected in parallel. What is the value of the equivalent resistance if

1. R ₁ = 20 ? and R ₂ = 20 ?

2. R ₁ = 20 ? and R ₂ = 80 ?

3. R ₁ = 20 ? and R ₂ = ? ?

4. R ₁ = 20 ? and R ₂ = 0 ?

5. R ₁ = 20 ? and R ₂ = 50 ?

8.

One of the resistances in the network shown in Fig 2.7 is blurred because of coffee spillage. If the equivalent resistance of the network is R _eq = 20 ?, what is the value of the blurred resistor?

Figure 2.7

9.

Determine...
