TABLE OF CONTENTS TYPING = A
PULLDOWNS = DRAW / ARC
TOOLBARS =DRAW
There are 10 ways to draw an ARC in AutoCAD. Not all of the ARCS options are easy to create so you may find it is often easier to trim a Circle or use the Fillet command.
On the job, you will probably only use 2 of these methods. Which 2 will depend on the application.
An ARC is a segment of a circle and must be less than 360 degrees.
Most ARCS are drawn counter-clockwise but you will notice in the examples on the following pages that some may be drawn clockwise by entering a negative input.
Examples of each of the ARC options are shown on the following pages.
Also, refer to the "Help" menu for additional examples of the use of the Arc command.

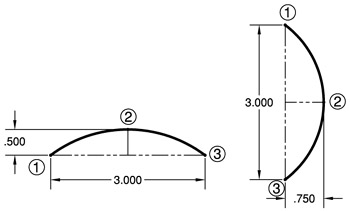

| 3 PONT

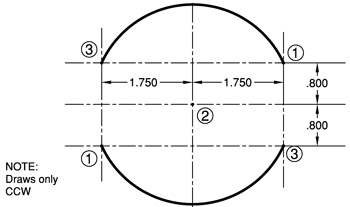

 | START, CENTER, END
 |

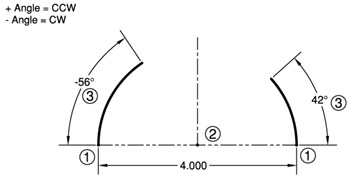

| START, CENTER, ANGLE

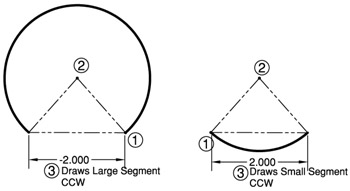

 | START, CENTER, LENGTH
 |
| START, END, ANGLE

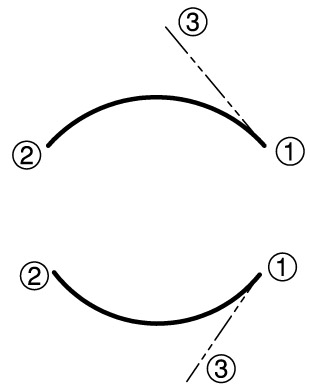

 | START, END, DIR
 |

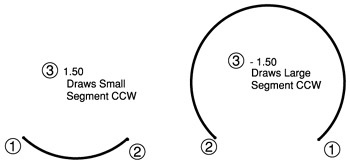

| START, END, RADIUS
 | CENTER, START, END
|

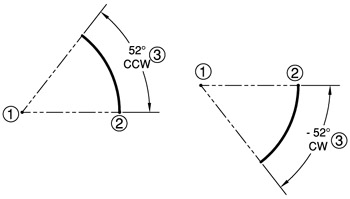

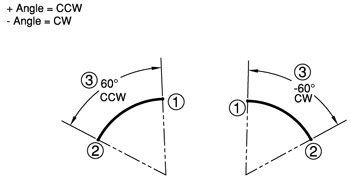

| CENTER, START, ANGLE

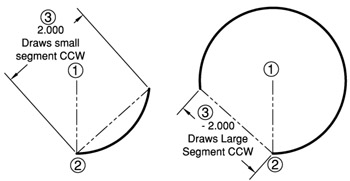

 | CENTER, START, LENGTH
 |

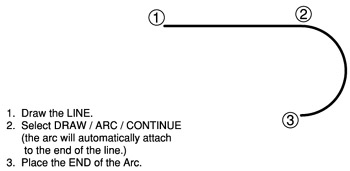

| CONTINUE

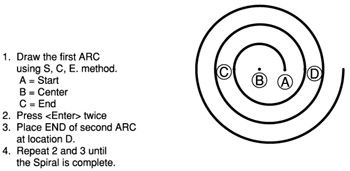

 | DRAWING A SPIRAL
 |
