Chapter 25.3: SIGNAL SOURCES
Tomas Fetter
INTRODUCTION
The simplest useful definition for a signal is an electrical voltage (or current) that varies with time. To characterize a signal, an intuitive yet accurate concept is to define the signal s waveform. A waveform is easy to visualize by imagining the picture a pen, moving up and down in proportion to the signal voltage, would draw on a strip of paper being steadily pulled at right angles to the pen s movement. Shown in Fig. 25.3.1 is a typical periodic waveform and its dimensions. A signal source, or signal generator, is an electronic instrument that generates a signal according to the user s commands with regard to its waveform (Fig. 25.3.2). Signal sources serve the frequent need in engineering and scientific work for energizing a circuit or system with a signal whose characteristics are known.
Figure 25.3.1: Waveform of an active typical period signal.

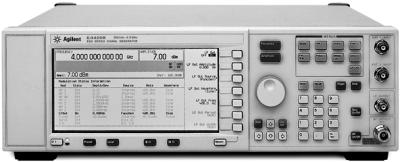

Figure 25.3.2: Today s signal generators must meet demanding specifications, including accuracy, spectral purity, and low phase noise. This Agilent Technologies 4422B Signal Generator covers 225 kHz to 4 GHz and can be tailored to meet changing requirements as technologies evolve.
KINDS OF SIGNAL WAVEFORMS
Most signals fall into one of two broad categories periodic and nonperiodic. Signal source instruments generate one or the other, and sometimes both. A periodic signal has a waveshape, which is repetitive: the pen, after drawing one period of the signal waveform, is in the same vertical position where it began, and then it...
