Applied Electromagnetics Using QuickField and MATLAB

Section 8.7 - Superconductivity: Hollow Superconducting Shells

Zero Field Cooling

If a multiply connected superconductor (MCS), such as a tube or ring, is cooled in the presence of a magnetic field, flux is expelled from the bulk of the superconductor but still penetrates the opening. After turning off the external magnetic field, flux will remain trapped in the opening. If the superconductor is cooled in zero field (ZFC) and the field is then switched on, screening currents will flow that cancel the applied magnetic field in such a way that the total flux through the MCS remains zero. The appropriate MCS boundary condition depends on the field present at the time that the superconducting state is established. In two dimensions, constraining the vector potential to be zero on the surface of the superconductor satisfies the zero flux condition. The field-cooled case is modeled with zero normal field, or permeability.

Flux Trapping

A multi-connected superconducting body such as a ring or a tube will trap any flux present in the hole of the superconductor upon transition to the superconducting state. If the field is then changed after the superconducting state is established, screening currents will flow so as to keep the amount of trapped flux a constant. In this way a ZFC superconductor will maintain the zero flux condition upon the application of an external magnetic field.

Superconducting Ring

A field-cooled superconducting washer is simulated in an axial background field in Figure 8.5 (a). The cross-section of the washer appears as two strips incoordinates. Here the background field is seen to be diverted by the sides of the washer but still penetrates the hole of the superconductor. The boundary condition tion applied here is on the superconductor. This boundary condition is also applicable modeling a superconducting washer with a thin slit so that the superconducting path is not complete. In this case the flux density is enhanced in the opening of the washer as is evident by the increased density of flux lines in that region. The washer then acts as a superconducting flux-focuser. In Figure 8.5 (b) the boundary condition Az = 0 is applied to the strip washer simulating the ZFC condition, where flux lines are now expelled from the interior.

A ZFC superconducting ring in a uniform axial magnetic field is modeled in r-z coordinates with the boundary conditionapplied to the superconductor so that, by Stokes' theorem, the total flux

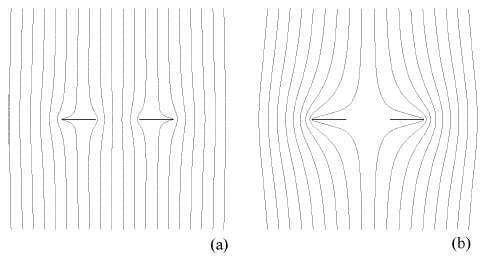

FIGURE 8.5 (a) Field cooled and (b) zero field cooled superconducting ring in an axial magnetic field modeled in x-y coordinates.

FIGURE 8.6 Normalizedalong a radial contour of a superconducting ring with a 5 cm O.R. and a 1 cm I.R. modeled in r-z coordinates (a) zero field-cooled ring (b) field-cooled ring and (c) ring in normal state.

is constrained to be zero. In general, flux lines will still penetrate the ring although the total flux will remain zero. In r-z coordinates, forthe sign ofmust change along a radial contour from the center to the edge of the ring. Notably, a locus or ring of points exists, where the axial component of magnetic field vanishes completely inside the ring.

Normalized plots of along a radial contour of a field cooled, superconducting ring (or flux focuser), a ZFC ring, and a normal state ring are shown in Figure 8.6. The ring has an O.D. of 10 cm and an I.D. of 1 cm. The magnetic field is unattenuated by the normal state ring and is increased by a factor of 2.3 at the center of the field-cooled ring. At the center of the ZFC ring, the field is reduced by a factor of 10 and is zero at the nodal point (where changes sign).

Superconducting Tube

Figure 8.7 (a) illustrates the flux line distribution of a superconducting tube in an axial uniform field. The tube is modeled as two parallel strips incoordinates with boundary condition Az = 0. As a comparison Figure 8.7 (b) shows the calculated flux density with the same tube in a transverse x-directed field. Note the greater field penetration into the tube by the transverse field compared to

FIGURE 8.7 Superconducting tube in the presence of (a) axial and (b) transverse fields modeled in x-y coordinates.

FIGURE 8.8 FEM calculation of the field attenuation along the axis of a 1.0-cm radius superconducting tube modeled in r-z coordinates (solid line) compared to the analytical solution (dotted line).

the axial field. For a superconducting tube with rotational symmetry, the field attenuates exponentially along the axis of the tube according to

and

for axial and transverse components of the incident field, respectively. The z-component magnetic field along the tube axis is plotted in Figure 8.8 showing agreement with the theoretical attenuation factor (8.9). The transverse attenuation factor for a highly permeable tube (see Chapter 5) is the same as the axial attenuation factor for a superconducting tube of the same radius. This suggests combining superconducting and highly permeable materials for shielding applications.
