AC Circuits
The problems in this section illustrate that Ohm's Law works for ac circuits as well as dc circuits.
Problem 2-10: UNKNOWN DEVICE
Q:

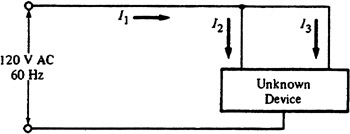

You have been given a potted device and asked to determine the type and value of elements it contains. When connected to 120 volts, 60 Hz, 2 amps ac flow in each of the three paths, shown below:
Assume all elements are linear, passive, and bidirectional.
Answers
Q:
In order for all three currents to be the same magnitude, the current phasor diagrams must form an equilateral triangle as shown below (assume that I 1 is at 0 with respect to the ac source and that branch 2 is capacitive).
(answer)
(answer)
(answer)
(answer)
If your answers are correct, go on to Problem 2-11.
If your answers are not correct, review pp. 11 and 12.
Problem 2-11: PARALLEL BRANCHES
Q:

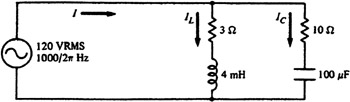

In the circuit that follows, calculate the power dissipated by the load:
Answers
Q:
(answer)
If your answer is correct, go on to Problem 2-12.
If your answer is not correct, review pp. 11 and 12.
