5.8: Switched-Path Attenuators
5.8 Switched-Path Attenuators
Switched-path attenuators [149 151] are constructed from two SPDT switches with two paths in between, and each path has a different attenuation, as shown in Figure 5.142. The attenuating path is usually constructed from a resistive-T, Pi, or bridged-T network of resistors [152]. An example 6-bit digital switched-path attenuator MMIC is shown in Figure 5.143, which has a bandwidth from 0.5 to 16 GHz.

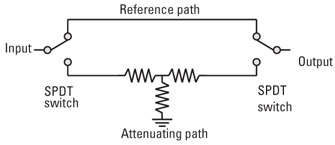

Figure 5.142: Switched-path digital attenuator.

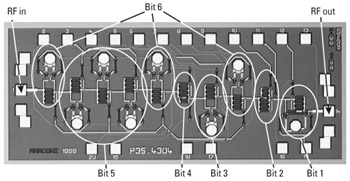

Figure 5.143: A 6-bit digital switched-path attenuator MMIC, 0.5 to 16 GHz. ( Source Bookham Inc., 2006. All Rights Reserved.)
