1.

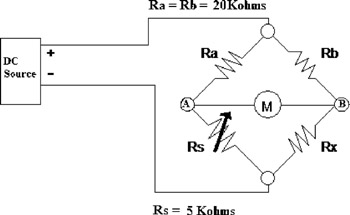

Using the following figure, answer questions a, b, and c.

1. If Rs is set to 3.850 kilohms for a balanced condition, what is the value of Rx?

   __________ ohms

2. If the DC source = 10V at balance what current flows in the

   Ra-Rs branch __________ mA

   Rb-Rx branch __________ mA

   A-B branch ____________ mA

3. What is the range (in ohms) that can be measured with this bridge?

   _______ ohms to _______ ohms

2.

In the following figure determine the value of the multiplier resistor to measure resistance in the range of:

• 10 ohms to 1 kilohm _________ ohms

• 5 kilohms to 10 kilohms __________ ohms

• 0.1 megohm to 1 megohm __________ ohms

• 50 kilohms to 100 kilohms __________ ohms

• 1-100 ohms __________ ohms

1.

Using the following figure, answer a, b, and c.

1. If Rs is set to 3.850 kilohms for a balanced condition, what is the value of Rx?

   3.850 kilohms

2. If the DC source is 10V at balance what current flows in the

   1. Ra-Rs branch 0.42mA

   2. Rb-Rx branch 0.42mA

   3. A-B branch 0.0mA

3. What is the range (in ohms) that can be measured with this bridge?

   Approx: 0 ohms to 5000 ohms

2.

In the following figure determine the value of the multiplier resistor to measure resistance in the range of:

• 10 ohms to 1 kilohms 10 kilohms

• 5 kilohms to 10 kilohms 20 kilohms

• 0.1 megohm to 1 megohm 2 megohms

• 50 kilohms...
