Linear Shafts Information
Last revised: January 13, 2025

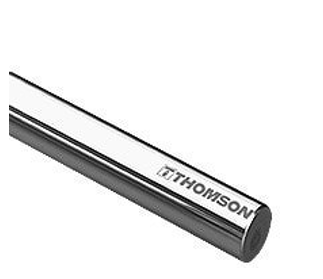

Linear shafts are elongated, rod-shaped devices that provide linear motion for power transmission applications.
Mounting Options
Some linear shafts have axial or radial holes for mounting to support structures. Others are grooved for the placement of snap rings or channeled for keyways.
Solid or hollow linear shafts with male or female threads and stepped or chamfered ends are also available.
Materials and Coatings
Most linear shafts are made of aluminum, alloy steel, carbon steel, stainless steel, composite materials, or plastics.
- Alloy steel is harder than carbon steel and provides superior durability.
- Stainless steel is well-suited for applications in which corrosion resistance is an important consideration.
- Aluminum linear shafts provide good electrical and thermal conductivity, high reflectivity, and resistance to oxidation.
- Composite materials are often made of carbon fibers bonded together by resins. They are not as strong as metal shafts, but are lightweight and help reduce energy requirements.
Linear shafts are usually coated or hardened to improve durability.
- Anodizing is a protective surface coating process used mainly with aluminum products.
- Black oxide coatings are applied to steel or stainless steel shafts to prevent ion corrosion.
- Ceramic coatings provide a wear-resistant finish while chromium coatings improve corrosion resistance and reduce friction.
Linear shafts with nickel or nitride coatings are also available. Teflon®, a registered trademark of DuPont Dow Elastomers, is a class of fluoropolymer resins that is resistant to high temperatures, chemical reactions, corrosion, and stress cracking. Linear shafts that are coated with PTFE are used in a variety of applications. Some steel shafts are case-hardened with carbon or nitrogen. Others are through-hardened to ensure that the entire shaft has the same hardness.
Linear Shaft Hardness
There are several ways to measure the hardness of linear shafts.
- The Rockwell hardness test presses a steel or diamond cone against a test sample and measures the depth of the resulting indentation. Higher measurements indicate harder materials. For linear shafts, common Rockwell hardness ranges are 50 to 59, 60 to 69, and 70 to 79.
- The Brinell hardness test subjects a test material to a load of 3000 kg with a hardened steel or carbide ball that is 10 mm in diameter.
- The Knoop hardness test also measures a material’s hardness through its resistance to indentation.
- The Vickers hardness test indents a test material with a diamond indenter that is shaped into a right pyramid with a square base and an angle of 136° between opposite faces.
Specifications
Important specifications for linear shafts include shaft diameter or width, maximum length, weight, height, and tolerance.
- Most linear shafts have circular or square cross sections and are produced in standard lengths that can be cut to size for specific applications.
- Weight is measured in per unit distance, typically pounds per feet.
- Ultra precision shafts have a very tight tolerance.
- Standard grade and precision grade linear shafts are also available.
Standards
Linear shafts must adhere to standards to ensure proper design and functionality. Standards can be found at the IHS standards store.
Linear Shafts FAQs
What are the key factors to consider when selecting a solid shaft for a linear motion application?
When selecting a solid shaft for a linear motion application, several key factors should be considered to ensure optimal performance and longevity.
Material Selection
The shaft material should be chosen based on the application requirements. Common materials include carbon steel, chrome-plated steel, and stainless steel. Each material offers different properties in terms of hardness, corrosion resistance, and cost.
Surface Hardness and Finish
A sufficiently hard surface is crucial to prevent rapid wear and to maintain a smooth operation. The shaft should also be perfectly cylindrical and straight with a smooth surface finish to ensure proper load distribution and to maximize the travel life of the system.
Load and Force Requirements
Understanding the load, accuracy, force, speed, and acceleration required by the motion system is essential. These parameters help in specifying the correct type and size of the shaft.
Precision and Straightness
Precision in the shaft's dimensions and straightness is vital for reducing wear and ensuring the system's reliability and performance.
Environmental Conditions
Consider the operating environment, such as exposure to moisture, chemicals, or extreme temperatures, which might necessitate specific coatings or materials to prevent corrosion and wear.
Application-Specific Requirements
Define the type of motion required (e.g., sliding or translating) to ensure that a linear shaft is the appropriate choice for the application.
These factors collectively help in selecting a solid shaft that meets the specific needs of a linear motion application, ensuring efficiency and durability.
How do environmental conditions affect the choice of linear shafts?
The choice of material is crucial when considering environmental factors. For instance, stainless steel is often preferred in environments with high moisture or exposure to chemicals due to its corrosion resistance. Chrome-plated steel might be suitable for applications requiring a hard surface with some level of corrosion resistance.
In environments where corrosion is a concern, additional coatings or surface treatments may be necessary to protect the shaft. These coatings can enhance the shaft's resistance to harsh conditions, thereby extending its service life.
Extreme temperatures can affect the material properties of the shaft, such as its hardness and dimensional stability. Selecting materials that can withstand the specific temperature range of the application is essential to maintain performance and prevent failure.
In applications where cleanliness is critical, such as in clean rooms or vacuum environments, the shaft material and finish must be chosen to minimize particle generation and ensure compliance with cleanliness standards.
These factors highlight the importance of considering environmental conditions when selecting linear shafts to ensure they meet the specific demands of the application and maintain optimal performance.
How do coatings affect the durability of linear shafts?
Coatings play a crucial role in enhancing the durability of linear shafts by providing protection against various environmental and operational challenges.
Coatings such as black oxide and chrome plating are applied to improve the corrosion resistance of linear shafts. Black oxide coatings prevent ion corrosion on steel or stainless steel shafts, while chrome coatings offer moderate to very good corrosion resistance, depending on the type used.
Ceramic coatings provide a wear-resistant finish, which helps in reducing the wear and tear of the shaft during operation. This is particularly important in applications involving high friction or abrasive environments.
Chromium coatings not only improve corrosion resistance but also reduce friction, which can enhance the efficiency and lifespan of the shaft by minimizing wear.
Some coatings, like Teflon® (PTFE), provide resistance to high temperatures and chemical reactions, which can be beneficial in harsh operating environments.
Coatings can also contribute to the surface hardness of the shaft, which is essential for maintaining the structural integrity and performance of the shaft under load. The Rockwell hardness test is often used to measure the hardness of coated shafts.
By improving the tribological properties of the shaft, coatings can enhance the overall operational efficiency of the linear motion system. This includes better load distribution and reduced energy consumption.
What are the trade-offs involved in selecting different coatings for linear shafts?
When selecting different coatings for linear shafts, there are several trade-offs to consider, each affecting the shaft's performance, cost, and suitability for specific applications.
Corrosion Resistance vs. Cost
Hard Chrome Plating: Offers moderate corrosion resistance and is less expensive, making it suitable for price-sensitive applications in moderate environments.
Black Chrome Plating: Provides very good corrosion resistance, similar to austenitic stainless steel, but is more expensive than hard chrome plating.
Wear Resistance vs. Friction Reduction
Ceramic Coatings: Provide excellent wear resistance, which is beneficial in high-friction or abrasive environments.
Chromium Coatings: Improve both corrosion resistance and reduce friction, enhancing efficiency and lifespan by minimizing wear.
Durability vs. Lead Time
Coatings can significantly enhance durability, but applying them can add to the lead time. Coated bearings are not typically stock items and may require custom manufacturing, which can delay delivery.
Temperature and Chemical Resistance vs. Application Specificity
Teflon (PTFE) Coatings: Offer resistance to high temperatures and chemical reactions, making them suitable for harsh environments, but may not be necessary for all applications.
Surface Hardness vs. Machining Complexity
Coatings can increase surface hardness, which is crucial for maintaining structural integrity under load. However, the process of applying coatings can alter dimensions, requiring precise machining and assembly adjustments.
These trade-offs highlight the importance of carefully considering the specific requirements of your application when selecting a coating for linear shafts. Each coating offers distinct advantages and limitations that must be balanced to achieve the desired performance and cost-effectiveness.
How does the process of applying coatings affect the dimensional tolerances of linear shafts?
The process of applying coatings to linear shafts can significantly affect their dimensional tolerances. Here are some key points to consider:
The thickness of the coating can alter the dimensions of the shaft. This change in dimensions needs to be accounted for during the design and manufacturing process to ensure that the shaft fits within the required tolerances.
Applying coatings can necessitate precise machining and assembly adjustments. The coating process might require disassembling the shaft, applying the coating, and then reassembling it with components that accommodate the new dimensions, such as using smaller balls in bearings.
Coatings can affect the tolerances on a micron scale, which is critical for applications requiring high precision. The process of coating and reassembling must be carefully managed to maintain the desired tolerances and prevent damage to the coating
When reassembling coated shafts, adjustments may be necessary to apply an appropriate level of preload, which involves selecting components like balls with precise diameters to fit the altered dimensions.
These factors highlight the importance of considering the effects of coatings on dimensional tolerances during the design and manufacturing of linear shafts.
What are the challenges in maintaining precision after applying coatings?
Maintaining precision after applying coatings to linear shafts involves several challenges, primarily due to changes in dimensions and the need for precise adjustments.
The thickness of the coating can alter the dimensions of the shaft, which affects the fit and function of the shaft within its assembly. This change must be accounted for during the design and manufacturing process to ensure that the shaft remains within the required tolerances.
Applying coatings may require disassembling the shaft, applying the coating, and then reassembling it with components that accommodate the new dimensions. This process can be complex, especially when maintaining high precision is critical.
Coatings can affect tolerances on a micron scale, which is crucial for applications requiring high precision. The process of coating and reassembling must be carefully managed to maintain the desired tolerances and prevent damage to the coating.
When reassembling coated shafts, adjustments may be necessary to apply an appropriate level of preload. This involves selecting components like balls with precise diameters to fit the altered dimensions, which requires an inventory of balls with diameters in gradations of 1 µm.
These challenges highlight the importance of careful planning and execution when applying coatings to linear shafts to maintain precision and ensure optimal performance.
What are the common issues faced with linear shafts in motion systems?
When dealing with linear shafts in motion systems, several common issues can arise that may affect performance and longevity. Here are some of the key issues:
Wear and Tear
Rapid wear can occur if the shaft does not have a sufficiently hard surface or if it is not perfectly cylindrical and straight with a smooth surface finish. This can reduce the ball contact area and the number of balls carrying the load, ultimately diminishing the bearing's performance in terms of load capacity and travel life.
Corrosion
Linear shafts are often exposed to environments that can cause corrosion. Coatings such as black oxide and chrome plating are used to enhance corrosion resistance, but if not properly selected or applied, corrosion can still be a significant issue.
Dimensional Changes Due to Coatings
Applying coatings can alter the dimensions of the shaft, affecting its fit and function within the assembly. This requires precise machining and assembly adjustments to maintain the required tolerances.
Precision and Tolerance Issues
Maintaining high precision is critical, especially in applications requiring micron-level tolerances. Coatings and reassembly processes must be carefully managed to prevent deviations that could impact performance.
Environmental Challenges
Environmental conditions such as temperature variations, exposure to chemicals, and cleanliness requirements can affect the choice of materials and coatings, impacting the shaft's performance and durability.
