Leakage factors C _W, C _F and C _?

Refer to Fig. 23-28 for C _W, C _F, and C _? for various values of B/L ratios

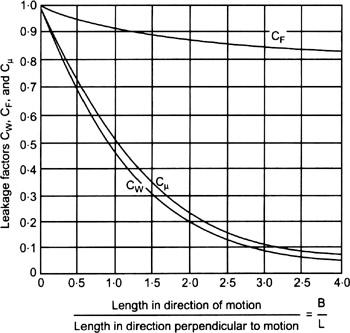

Figure 23-28: Kingsbury's leakage factors as function of B/L ratios under minimum friction. [Kingsbury ⁶]

Load leakage factor according to Kingsbury ⁶

Refer to Fig. 23-28 for C _W

Load leakage factor C _W as a function of B/L ratio for a slider bearing having q = ( h ₁/ h ₂) ?1 = 1 or h ₁ = 2 h ₂

Refer to Table 23-16.

Load leakage factor for 120 , centrally loaded partial bearing according to Needs ⁷

Refer to Fig. 23-29 for C _W for various attitudes ?.

Figure 23-29: Leakage factors for load for 120 centrally partial journal bearings for various attitudes. [Needs ⁷]

Load correction factor for side flow according to Boyd and Raimondi ²⁴

Refer to Fig. 23-30 for C _W for various minimum oil film thickness variables ?.

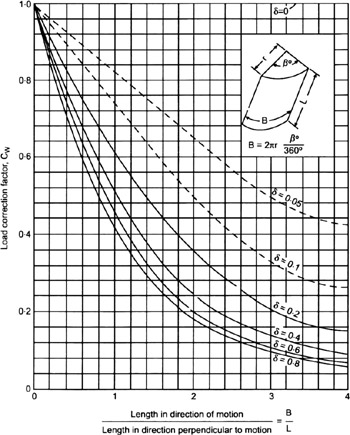

Figure 23-30: Load correction factor (C _W) for side flow.
