LEARNING OBJECTIVES

After completing this lesson, you will be able to:

1. Edit Attributes

2. Extract Attributes

3. Extract data to an External file.

EDITING ATTRIBUTES

After a block with attributes has been inserted into a drawing you may want to edit it. AutoCAD has many ways to edit these attributes.

Sorry LT users, you can only use the ATTEDIT command shown on page 9-4 to edit the attribute text.

1. Select the BLOCK ATTRIBUTE MANAGER command using one of the following:

   • TYPE = BATTMAN

   • PULLDOWN = MODIFY / OBJECT / ATTRIBUTE / BLOCK ATTRIBUTE MANAGER

   • TOOLBAR = MODIFY II

1. Select the block that you want to edit.

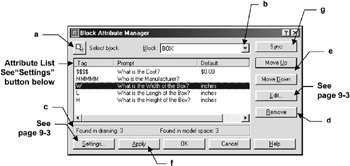

   The following dialog box will appear .



1. Select Block Allows you to select another block takes you back to the drawing so you can select another block to edit.

2. Block down arrow Allows you to select another block from a list.

3. Found lists how many of the selected block were found in the drawing and how many are in the space you are currently in. (You must select the model tab or Layout tab . It will not find model space attributes if you are not in model space.)

4. Remove -Allows you to remove an Attribute from a block. (See Apply and Sync below)

5. Move Up and Down -Allows you to put the prompts in the order you prefer.

6. Apply
