EXERCISE 30

INSTRUCTIONS:

1. Open drawing My Decimal Setup

   Select the 11 17(1 to 1) tab. (You should see your title block)

   Double click in the viewport area to get into model space.

2. STEP 1.

   Draw the details shown on page 30-3. Do not dimension.

   Draw the break line as follows:

   1. Draw the break line using POLYLINE.



   2. Change it to a curved line using:

      • MODIFY / OBJECT / POLYLINE

        • Select the Polyline

        • Select Spline

   3. Draw the Hatch

      Use Hatch pattern ANSI 31, Layer = Hatch

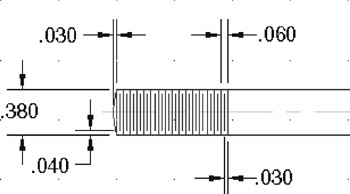

   4. Thread dimensions below. Use Layer Threads.



3. STEP 2.

   Return to paperspace.

   Draw the PARTS LIST (in paperspace) shown on page 30-4, STEP 2.

   Make the changes to the title block.

4. STEP 3.

   Move the parts into the proper locations to form the assembly shown.

   The distance between the jaws is 1 ?.

   Draw the Balloons:

   1. Use Leader

   2. Use a .50 dia circle.

   3. Text ht. = .187

5. Save as EX-30 and PLOT using Page setup "11 17 Mono".

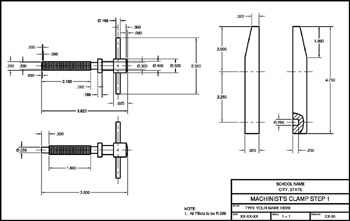

EXERCISE 30 STEP 1

Follow Step 1 instruction on page 30-2.

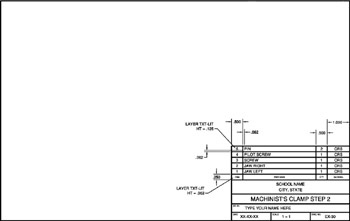

EXERCISE 30 STEP 2

Follow Step 2 instruction on page 30-2.

EXERCISE 30 STEP 3

Follow Step 3 instruction on page 30-2.
