Last revised: February 26, 2025

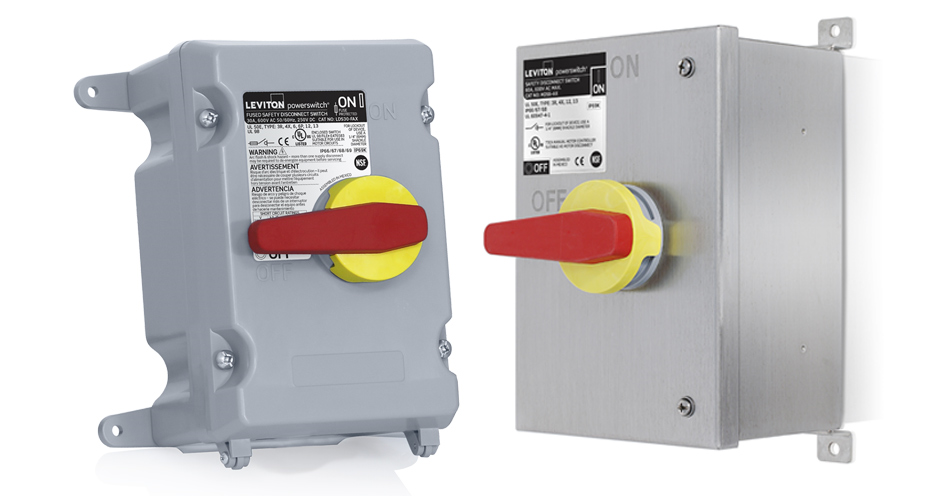

Disconnect switches rapidly disconnect circuits from power supplies in the event of an emergency. Disconnect switches can function in conjunction with circuit breakers, devices which interrupt the flow of electricity along a circuit when the current exceeds the circuit’s capacity. Some disconnect switches are suitable for AC systems. Others are designed for DC systems. Products for single-phase and three-phase power are also available.

Disconnect switches are important safety features on generators and electrical motors. Rural electricity providers or cooperatives often require customers to provide a generator disconnect switch if an auxiliary generator is operating on their system. The generator disconnect switch ensures that a lineman working on the system is in no danger of electrocution. A generator disconnect switch is also called a transfer or isolation switch.

Types of Disconnect Switches

There are two basic types of disconnect switches: battery disconnect switches and electrical disconnect switches.

A battery disconnect switch is a knife switch that prevents unwanted drain from a vehicle battery when the vehicle isn’t in use or is in storage. The battery-disconnect switch installs over either the positive or negative terminals on the battery. Another type of battery disconnect switch comes with a removable knob to protect a vehicle from being stolen when it is parked in a public garage for long periods.

Electrical disconnect switches are often used on electric motors, such as industrial forklifts, agricultural vehicles, and aircraft tow tractors. Electrical disconnect switches are also used on a variety of electrical appliances, such as heaters and air conditioners, to ensure that contractors working on these appliances are protected from the incoming power. Electrical disconnect switches can adhere to international standards developed by the International Electrotechnical Commission (IEC) or to U.S. standard developed the National Electrical Manufacturers Association (NEMA). Both regulating bodies work together to provide quality standards for electrical products manufacturers.

Specifications

Selecting disconnect switches requires an analysis of performance specifications. Parameters include:

• Current rating
• Operating voltage
• Horsepower rating
• Short-circuit interrupt capacity
• Number of poles

Fuse Types

With fusible disconnect switches, fuse type is also an important consideration. Choices include Class CC, Class H, Class J, Class L, Class T, and Class K.

Mounting Styles

For both fusible disconnect switches and non-fusible disconnect switches, there are many choices for mounting style. These include DIN rail, panel mount, wall or box-mount, base mount, and flange mount.

• DIN rail — The device is designed for mounting on a standard DIN rail.
• Panel mount — Panel mount devices can be placed into, or through, a depression within an existing panel so that its face is flush, or nearly flush, with the panel. These connectors are used in applications where the connector is required to fit a panel cutout.
• Wall / box mount receptacle — Wall or box mount receptacles are typically flanged and threaded for an accessory (backshell), and intended for permanent mounting.
• Base mount — Base mount switches use a mounting pad, normally using screws.
• Flange mount — Flange mounted plugs (flanged inlets) or flange mounted receptacles (flanged outlets) are devices attached to panels by bolting the flange, or riveting the flange in place through holes in the flange surface.

Categories

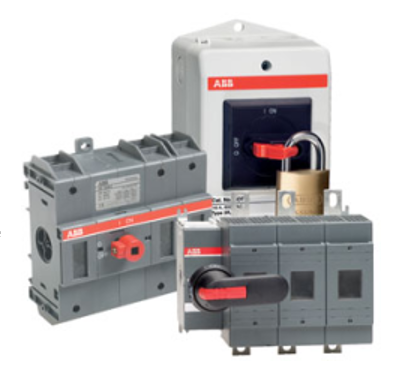

Disconnect switches may be categorized as fusible, non-fusible, enclosed fusible, and enclosed non-fusible switches.

• Fusible switches support the installation of fuses and provide a greater degree of protection.
• Non-fusible switches do not support fuse installation.

Standards

Disconnect switches must adhere to certain standards and specifications to ensure proper design and functionality.

ANSI C37.46 — Specification for high-voltage expulsion and current-limiting power class fuses and disconnecting switches.

Disconnect Switches FAQs

What are the key differences between the various types of disconnect switches and their applications in electrical systems?

Here are the key differences between various types of disconnect switches and their applications in electrical systems:

Types of Disconnect Switches

Battery Disconnect Switches: These are knife switches used to prevent unwanted battery drain when a vehicle is not in use or is in storage. They can be installed over the positive or negative terminals of a battery. Some designs include a removable knob to prevent vehicle theft when parked for long periods.

Electrical Disconnect Switches: These are used to isolate electrical circuits by switching the electrical flow on or off. They are crucial for maintenance and emergency shutdowns.

Design Variations

Fusible Disconnect Switches: These include fuses to protect against overcurrent and short-circuiting. They are suitable for systems where such protection is necessary.

Non-Fusible Disconnect Switches: These do not provide protection against short-circuiting and are used to simply switch the electrical flow on or off. They are recommended for systems with fault currents of less than 5kA or where a dedicated fuse is present upstream.

Applications

Battery Disconnect Switches: Primarily used in vehicles to prevent battery drain and theft.

Electrical Disconnect Switches: Used in various electrical systems for maintenance, safety, and emergency purposes. Fusible types are used where overcurrent protection is needed, while non-fusible types are used in systems with existing upstream protection.

What are the applications of battery disconnect switches in different systems?

Vehicle Systems

Battery disconnect switches are primarily used in vehicles to prevent unwanted battery drain when the vehicle is not in use or is in storage. This helps in maintaining the battery's charge over long periods of inactivity.

They can also serve as a theft deterrent by using a design that includes a removable knob, which can be taken out to prevent the vehicle from being started when parked in public areas for extended periods.

What are the differences between fusible and non-fusible disconnect switches?

Here are the differences between fusible and non-fusible disconnect switches.

Fusible Disconnect Switches

Functionality: These switches incorporate fuses to provide protection against overcurrent and short-circuiting. This makes them suitable for systems where such protection is necessary.

Applications: They are typically used in electrical systems that require additional safety measures to prevent damage from electrical faults.

Non-Fusible Disconnect Switches

Functionality: These switches do not include fuses and are used solely to switch the electrical flow on or off. They do not provide protection against short-circuiting.

Applications: Non-fusible disconnect switches are recommended for systems with fault currents of less than 5kA or where a dedicated fuse is present upstream of the safety switch. They are used in scenarios where the system already has adequate protection measures in place.

What are the applications of fusible disconnect switches?

Based on the information available, here are some insights into the applications of fusible disconnect switches:

Protection Against Overcurrent and Short-Circuiting

Fusible disconnect switches are designed to incorporate fuses, which provide protection against overcurrent and short-circuiting. This makes them particularly suitable for electrical systems where such protection is necessary to prevent damage from electrical faults.

Safety in Electrical Systems

These switches are typically used in scenarios where additional safety measures are required. By integrating fuses, they help ensure that the electrical system is safeguarded against potential hazards that could arise from electrical faults.

What are the safety features of fusible disconnect switches?

Protection Against Overcurrent and Short-Circuiting

Fusible disconnect switches are designed to incorporate fuses, which provide protection against overcurrent and short-circuiting. This is a critical safety feature as it helps prevent damage to electrical systems from electrical faults by interrupting the flow of electricity when a fault is detected.

Enhanced Safety in Electrical Systems

By integrating fuses, fusible disconnect switches ensure that the electrical system is safeguarded against potential hazards. This additional layer of protection is particularly important in systems where electrical faults could lead to significant damage or safety risks.
