Belt and Chain Tensioners Information

Show all Belt and Chain Tensioners Manufacturers

Last revised: January 8, 2025

Reviewed by: Scott Orlosky, consulting engineer

Belt and chain tensioners reduce belt or chain slack and transmit drive torque uniformly. They also reduce noise and vibration; decrease sprocket, pulley, belt, and chain wear; and increase the life of drive components. Drives, belts and chains are installed with enough tension to create a level of friction that causes the belts or chains to grip the pulleys and the pulleys to turn. Most belt drives consist of flat leather, rubber, or fabric belts running on cylindrical pulleys, or belts with a V-shaped cross section running on grooved pulleys. V-belts require less tension than flat belts because their greater surface area creates more friction. Chain drives that use sprockets are reliable systems for long-running, continuous drive applications with limited shock and torque loads.

Some belt and chain tensioners are fixed in place after installation, while others provide various means of adjustment.

Manual belt and chain tensioners require operators to adjust screws or unbolt and reposition parts to obtain the proper tension.
Spring-loaded tensioners automatically maintain tension as belts or chains wear and stretch.
Floating tensioners are mounted on chains and belts, typically with two opposing pulleys or sprockets.
Tension rings spin with the drive and mount either inside the belt or chain, or between the drive and the driven pulley or sockets.

Belt and chain tensioners sometimes specify the maximum tension rated to maintain in the drive; however, not all tensioners carry this rating. End-of-travel limit switches for floating or spring-loaded tensioners indicate when a tensioner has run out of adjustment and may require repositioning.

Belt and chain tensioners are available in a variety of sizes, styles, and materials. They can handle different minimum and maximum loads as well as temperatures. With chain drives, maximum chain pitch is an additional consideration. Belt and chain tensioners are used in machinery and equipment, automobiles, bicycles, conveyor belts, and numerous other applications.

Applications

Perhaps the chain tensioner application that is most recognized is found in the chain drive of single speed bicycles. The tensioner is typically located near the sprocket on the rear wheel. Other applications include automotive belt tensioners as well as industrial belt and chain tensioners for power transmission applications.

Belt and Chain Tensioners FAQs

How do different types of tensioners impact the efficiency and longevity of mechanical systems?

To understand performance (longevity and efficiency) of different types of tensioners it’s important to understanding the different types of tensioners and how they operate.

Chain and Sprocket Systems

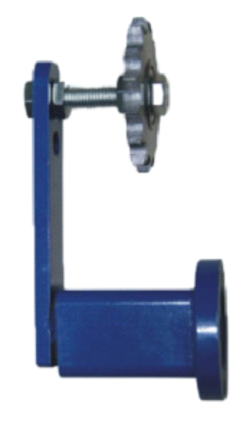

Proper tensioning is crucial to maintaining efficiency. A lack of proper tension can cause sagging linkages, chain whip, slippage and excessive wear. This can be remedied using a tensioning arm or idler sprocket, which helps maintain the correct tension and alignment, thereby reducing wear and extending the lifespan of the system.

Motor Bases

Fixed-position mechanisms, like a motor base with a chain and sprocket mechanism while cost-effective, is not optimal for tension control. Excessive wear, variations in tension due to heating, or loss of tension as bolts vibrate loose are all potential issues. This can affect the longevity of the components due to a lack of flexibility in handling load fluctuations and vibrations.

Belt Drives

Excessive tension is very common in belt drives, as they are often tightened by hand and the installer usually want to avoid slippage, so the error is usually made to over-compensate for the tension. This can lead to noise and increased wear, potentially shortening the belt's life. Proper installation tension is essential to prevent premature failure, such as belt tooth shear or tensile breakage. Ensuring the correct tension, either using a spring gage tensioner to achieve the proper tension, or an idler helps maintain efficiency and prolongs the system's operational life.

What are some of the other factors that can impact chain and sprocket systems?

Efficiency and Wear

Proper tensioning is crucial to prevent linkage sagging and ensure the chain maintains the correct tension and alignment. This reduces overall system inefficiency and minimizes wear, thereby extending the lifespan of the system.

Chain Mesh Stress

Implementing a toothed belt and gear system has some unique characteristics. Choosing the right tooth geometry and pitch is a bit of an art. Manufacturers can provide some engineering guidance, along with appropriate chain meshing configurations. This can reduce rubbing during operation cycles. This helps in maintaining the efficiency of the system.

Environmental Factors

Dust and dirt can slip between the linkages and sprocket teeth, leading to excessive wear. Ensuring a proper Ingress Protection (IP) rating and applying lubrication are essential to realize the full lifespan of the equipment.

Maintenance and Care

Misalignment errors, lubrication issues, and general wear and tear can impact the performance of chains as they mesh with sprockets. A planned maintenance and care program is essential to keep the equipment operating at its full potential

What is the role of lubrication in chain and sprocket systems?

Lubrication of chain and sprocket systems maintains their efficiency and prolongs their lifespan. Here are some key points regarding its importance:

Reduction of Wear and Tear

Lubrication helps to minimize the friction between the chain and sprocket teeth, which reduces wear and tear. This is essential for maintaining the integrity of the components and ensuring smooth operation over time.

Protection Against Environmental Factors

Dust and dirt can infiltrate the linkages and sprocket teeth, leading to excessive wear. Proper lubrication acts as a barrier, helping to prevent these contaminants from causing damage. Additionally, ensuring a proper Ingress Protection (IP) rating can further protect the system from environmental factors.

Efficiency Maintenance

By reducing friction and wear, lubrication helps maintain the efficiency of the chain and sprocket system. This ensures that the system operates smoothly and effectively, minimizing energy losses and enhancing performance.

Extended Equipment Lifespan

Regular application of lubrication is essential for realizing the full lifespan of the equipment. It helps in preventing premature failures and maintaining the system's operational capabilities over time.

What types of lubricants are suitable for chain and sprocket systems?

When it comes to lubricants suitable for chain and sprocket systems, there are several types and methods of application to consider.

Types of Lubricants

Non-detergent Oil: This type of oil is recommended for sprockets and roller chains as it provides effective cooling and impact dampening at high speeds. It is important to avoid heavy, greasy oils as they do not penetrate the small clearances in roller pins, plates, and rollers effectively.

Synthetic Lubricants: These do not contain a petroleum or mineral oil base and offer exceptional fire resistance and cooling performance. They are based on synthetic compounds such as silicone, polyglycol, esters, and others.

Solid Lubricants: Used in high temperature and high pressure environments, common types include graphite and molybdenum disulfide (MoS2).

Methods of Application

Manual Lubrication: Applied periodically with a brush or oil spout.

Oil Baths: Provide constant lubrication to a roller chain in an oil-tight casing.

Oil Stream Lubrication: Supplies the lubricant to the inner part of a chain using a circulating pump.

Oil Drips: Similar to oil streams but supply a lesser amount of oil to the chain.

These insights highlight the importance of selecting the right type of lubricant and application method to ensure the optimal performance and longevity of chain and sprocket systems.

How do environmental factors affect the performance of chain and sprocket systems?

Dust and Dirt Infiltration

Dust and dirt can slip between the linkages and sprocket teeth, leading to excessive wear. This can reduce the lifespan of the equipment if not properly managed. To mitigate this, ensuring a proper Ingress Protection (IP) rating and applying lubrication are essential steps to protect the system from environmental contaminants.

Lubrication

Proper lubrication improves and maintains efficient operation of the tensioner system. Regular cleaning and application of lubricants serves to mitigate environmental factors such as dust and dirt. Regular application of lubrication helps maintain the efficiency and longevity of the system.

Temperature and Humidity

Temperature and humidity can also impact the performance of chain and sprocket systems. High temperatures can affect the viscosity of lubricants, while humidity can lead to corrosion if not properly managed.
