V-Belts and V-Ribbed Belts Information

Show all V-Belts and V-Ribbed Belts Manufacturers

Last revised: February 5, 2025

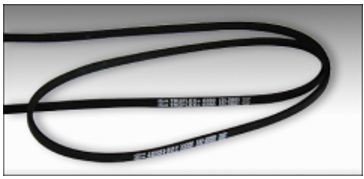

V-belts and V-ribbed belts are power transmission drive belts with a triangular or trapezoidal cross section. They are available in a variety of belt materials, reinforcement styles, and speed configurations.

Typically, V-belts and V-ribbed belts are used with mating pulleys in drives where speed ratio is not critical. V-ribbed pulleys are often used with mating belts for efficient, very high speed power transmission.

Specifications for V-belts and V-ribbed belts include:

Ultimate tensile strength (UTS)
Maximum operating speed

Belt Cross-Section

Belt cross-section is an important parameter to consider when selecting V-belts and V-ribbed belts. Published dimensions may vary.

Choices for V-Belts with English Cross-Sections include O / 3L / Z, A / 4L, B / 5L, C, D, E, 3V, 5V, and 8V.

Choices for V-Belts with Metric Cross-Sections include SPA, SPB, SPZ, 5 mm, 6 mm, 8 mm, 10 mm, 13 mm, 17 mm, 20 mm, 22 mm, 25 mm, 32 mm, and 40 mm.

Choices for Ribbed V-Belts or V-Ribbed Belts include H, J, L, M, and PK.

If the cross section is unspecified belt angle, then width and length need to be considered. Typically, both the section designation and number of ribs require specification and belt-pulley matching for V-belts and V-ribbed belts.

Features

A double-sided V-belt has a V-profile on both sides of belt and a hexagonal cross section.

With a cogged V-belt, the inside of the belt is notched for gripping. Sometimes, there is an X designation in the belt specification.

Variable speed V-belts and V-ribbed belts are wider than standard belts. As their name suggests, they are designed for variable-speed drives.

Anti-static V-belts help prevent buildup of static electricity.

Truly endless belts are not spliced, but are instead manufactured as one closed loop.

Open-ended belts come in a roll and may be cut and spliced to desired length and number of teeth.

V-belts and V-ribbed belts may be banded together for multi-sheave drives. The number of bands or ribs should be specified for products with multiple bands.

Belt materials exhibit different properties for:

Strength
Speed rating
Power transmission capability
Weight

Materials of construction may include:

Neoprene
Polyurethane
Rubber
Urethane

Some V-belts and V-ribbed belts are reinforced. Typically, the reinforcement takes the form of cords or bands running circumferentially along the belt near the top or at the pitch line.

V-belts and V-ribbed belts that are made of fiberglass, polyester, and steel are also available.

Standards

ISO 1081 — Belt Drives — V-Belts And V-Ribbed Belts, And Corresponding Grooved Pulleys — Vocabulary

ISO 5292 — Belt Drives — V-Belts And V-Ribbed Belts — Calculation Of Power Ratings

V-Belts and V-Ribbed Belts FAQs

How do the standards for V-belts and V-ribbed belts impact their selection for specific engineering projects?

The selection of V-belts and V-ribbed belts for specific engineering projects is significantly influenced by various standards. These standards ensure that the belts meet specific requirements for performance, compatibility, and safety. Here are some ways in which these standards impact their selection:

Power Ratings and Calculations

Standards such as the one for the calculation of power ratings for V-belts and V-ribbed belts provide guidelines on how to determine the appropriate belt for a given power transmission requirement. This ensures that the selected belt can handle the expected load without failure.

Dimensions and Compatibility

Standards specify the dimensions of belts and pulley groove profiles, which are crucial for ensuring compatibility between the belt and the machinery it is used with. For example, standards for endless narrow V-belts for mechanical engineering and the automotive industry outline these dimensions.

Uniformity and Testing

Standards that address the uniformity of belts and test methods for determining center distance variation help in selecting belts that will perform consistently and reliably in their applications.

Industry-Specific Applications

Certain standards are tailored for specific industries, such as agricultural machines or the automotive industry, which guide the selection of belts that meet the unique demands of these sectors.

Profile and Design Specifications

Standards detailing the dimensions of pulleys and V-ribbed belts for various profiles ensure that the belts fit correctly and function efficiently in their designated applications.

These standards help engineers select the right type of belt for their projects by providing detailed specifications and guidelines that ensure performance, safety, and compatibility.

What is the calculation of power ratings for V-belts?

The calculation of power ratings for V-belts is an essential aspect of selecting the appropriate belt for a given application. This process ensures that the belt can handle the expected load without failure. According to standard ISO 5292: Belt Drives — V-Belts and V-Ribbed Belts — Calculation of Power Ratings, which focuses on the calculation of power ratings for V-belts and V-ribbed belts, the following considerations are typically involved:

Load Requirements

The power rating calculation begins with understanding the load requirements of the application. This includes the amount of power that needs to be transmitted and the operational conditions under which the belt will function.

Belt Specifications

The specific characteristics of the belt, such as its material, cross-sectional dimensions, and construction, play a crucial role in determining its power rating. These factors influence the belt's ability to transmit power efficiently and reliably.

Operational Conditions

Factors such as speed, temperature, and environmental conditions are considered in the power rating calculation. These conditions can affect the belt's performance and longevity.

Safety and Performance Margins

Standards often include safety and performance margins to ensure that the belt can handle unexpected variations in load or operational conditions without failure.

What is the role of belt dimensions in power transmission?

The dimensions of V-belts and V-ribbed belts play a crucial role in power transmission for several reasons:

Compatibility and Fit

The dimensions of the belt, including its width, thickness, and length, must match the specifications of the pulleys and machinery it is used with.

Power Transmission Efficiency

The cross-sectional dimensions of a belt affect its ability to transmit power efficiently. A belt that is too narrow may not provide sufficient contact with the pulley, leading to slippage and reduced power transmission. Conversely, a belt that is too wide may not fit properly in the pulley groove, causing misalignment and wear.

Load Capacity

The dimensions of the belt are directly related to its load-carrying capacity. Larger belts can typically handle higher loads, while smaller belts are suited for lighter applications.

Durability and Longevity

Properly dimensioned belts are less likely to experience excessive wear and tear, which can extend their operational life.

Industry-Specific Requirements

Different industries may have specific dimensional requirements for belts to meet unique operational demands.

How do environmental conditions affect the performance of V-belts?

Environmental conditions can significantly affect the performance of V-belts in various ways. Here are some key factors to consider:

Temperature

Extreme temperatures, whether hot or cold, can impact the material properties of V-belts. High temperatures may cause the belt material to soften, leading to increased wear and potential slippage. Conversely, low temperatures can make the belt material brittle, increasing the risk of cracking or breaking.

Humidity and Moisture

Exposure to high humidity or moisture can lead to the degradation of belt materials, especially if they are not designed to be water-resistant. This can result in reduced belt life and performance issues such as slippage.

Dust and Debris

Environments with high levels of dust or debris can cause abrasion and wear on the belt surface. This can lead to premature failure and reduced efficiency in power transmission.

Chemical Exposure

Certain chemicals can react with the materials used in V-belts, leading to deterioration or weakening of the belt. It is important to select belts that are resistant to any chemicals they may encounter in their operating environment.

UV Exposure

Prolonged exposure to ultraviolet (UV) light can degrade the materials in V-belts, particularly those made from rubber or similar compounds. This can lead to cracking and reduced tensile strength.

What are the best practices for maintaining V-belts in harsh environments?

Maintaining V-belts in harsh environments requires careful attention to several factors to ensure their longevity and performance. Here are some best practices:

Proper Tensioning and Alignment

Use a proper belt-tensioning tool to adjust belts correctly and avoid over-tightening, which can lead to bearing failure.

Ensure proper alignment of the sheave to the driven equipment for reliability and to prevent premature wear.

Environmental Protection

Protect the belt from excessive dust, debris, and chemical exposure by using enclosures or covers.

Install air filtration or ventilation systems to improve environmental conditions and reduce the impact of dust and fumes.

Temperature Management

Be aware of the effects of high temperatures, which can cause rubber belts to harden and crack. Consider using high-temperature rubber belt constructions if operating in such environments.

Monitor temperature levels and make necessary adjustments to prevent heat degradation.

Lubrication

Avoid using oil-based lubricants with rubber V-belts; instead, opt for silicone lubricants to prevent degradation.

Regular Inspection and Maintenance

Follow an inspection plan for the mechanical systems to extend the lifetime of the motor and its components.

Implement a preventive maintenance program and a cleaning schedule to keep the area around the belts clean and free of debris.

These practices can help maintain the performance and extend the life of V-belts in challenging environments. For more specific guidance, consulting with V-belt manufacturers or referring to detailed standards and guidelines is recommended.
